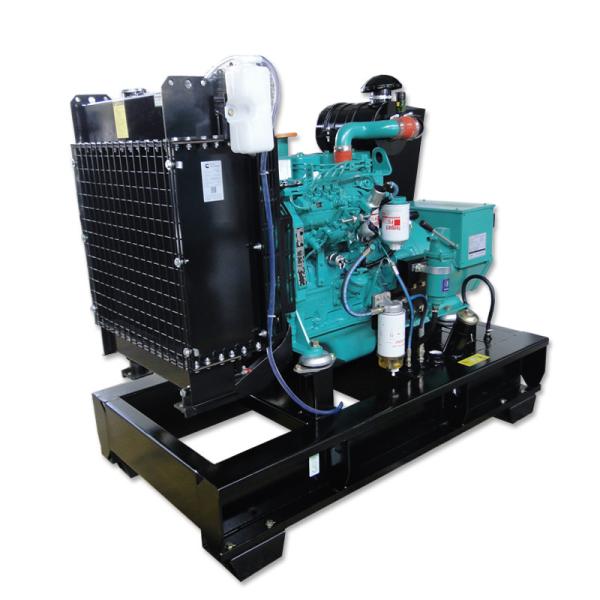

Yangdong YND485D diesel generator sets features:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) MCCB air conservation switch
j) 12 / 24V starting accumulator and battery line
k) Set shock absorber
l) High-efficient silencer
| Manufacturer | Jiangsu Mingbang Intelligent Technology Co.Ltd | | Model | MB-YD15 | | Prime Power | 13KW/16.25KVA | | Standby Power | 15KW/18.75KVA | | Power Factor | COSΦ=0.8(lagging) | | Max. Output current | 25A | | Genset Weight | 750 KG(NET) | | Length x Width x Height (Engine) (mm) | 2100x730x1130 | | Rated Voltage | 400/230V | | Frequency | 50HZ | | Engine Specification | | Manufacturer | Yangdong | | Model | YND485D | | Rated speed | 1500rpm | | Prime Power | 15KW/18.75KVA | | Standby Power | 17KW/21.25KVA | | Fuel Consumption | <=247g/KW.H | | Lube oil capacity | 6 L | | Bore (mm) x Stroke (mm) | 85x95 | | Compression ratio | 18:1 | | Displacement (litre) | 2.156L | | Coolant capacity, L | 3.5 L | | Configuration | 4 in line ,four-stroke, Turbocharged, Charge Air Cooled | | Cooling | Liquid Cooled | | Governor type | Mechanical | | Starting voltage | 24 Volts DC | | Filtration system | Air Filter,Fuel Filter,Oil Filter | | Alternator Specification | | Manufacturer | Jiangsu Mingbang Intelligent Technology Co.Ltd | | Model | MBC184ES | | Voltage Regulator | AVR(Auto-voltage stabilization) | | Voltage adjust range | ±1% | | Rated Voltage/Frequency/Factor | 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire | | Steady-state Frequency | better than 5% | | No-load Voltage Adjust Range | >=95%-105% | | Insulation Class | H | | IP Protection | 23 | | Excitation Type | Single bearing, Brushless, Self-excited |
|
|
|
|
|
|
Our factory
Mingbang Co.,Ltd is the professional manufacturer of power
generator, light tower and air compressor in China. We provides a
complete line of generators for commercial,industrial and
residential application.We specialize in providing a wide range of
well known and trusted brands of diesel generators, supplying
generators from 5kw to 2000kw at competitive prices.
Besides generators, we also product the refer product include
lighting towers and air compressor. At the same time, we also
provide the reference electrical products, include ATS,
Synchronization system & switch gear.
Brushless AC Generator 12kw 21.6kVA Silent Soundproof Brushless
Alternator Diesel Generator
Our Service
1. Ensure good quality, good package for transporation and deliver
on time during the production phase;
2. Manging sea freight to customer's port of destination;
3. Be responsible for the after-sales service.
More details for diesel generator sets ,please contact us any time
Your further inquiry will be welcome!!
